IKhabhinethi esebenzayo yesihluzi seHarmonic (100A-400A)

Inkcazelo emfutshane:

Ikhabhinethi yokucoca i-harmonic esebenzayo sisixhobo esiphucukileyo esisetyenziselwa ukunciphisa kunye nokulawula ukuphazamiseka kwe-harmonic kwinkqubo yamandla.Ezi khabhinethi zisebenzisa iteknoloji yokucoca esebenzayo ukujonga ngokusebenzayo kunye nokuhlalutya umxholo we-harmonic wonikezelo lwamandla, kwaye emva koko uvelise kunye nokufaka i-current counteracting currents ukuchasana ne-harmonics.Khusela izixhobo ezibuthathaka ekuthotyweni kunye nomonakalo onokwenzeka.Ezi khabhinethi zinokudibaniswa kwinkqubo yokusabalalisa amandla kunye nemodyuli enye okanye ngaphezulu yamandla omgangatho.

-I-2 ukuya kwe-50 yokunciphisa i-harmonic

-Imbuyekezo yexesha lokwenene

- Uyilo lwemodyuli

- Khusela izixhobo ekubeni zishushu okanye zingaphumeleli

- Ukuphucula ukusebenza kakuhle kwezixhobo

Imbuyekezo ekalisiweyo yangoku:100A~400A

Umbane oqhelekileyo:AC400V(-40%~+15%) ;500V(-20%~+15%) ;690V(-20%~+15%)

Inethiwekhi:3 isigaba 3 ucingo/3 isigaba 4 ucingo

Imilinganiselo yeKhabhinethi:800 x 1000 x 2200mm, inokwamkela iimodyuli ezi-5.

Thumela i-imeyile kuthi

Iinkcukacha zeMveliso

FAQ

Iithegi zeMveliso

Petrification

Umthombo weHarmonic: thyristor, inverter

Izixhobo zeHarmonic: fan fan, zonke iintlobo zeempompo

Ushishino lweziko ledatha

Umthombo weHarmonic: I-UPS, isilungisi

Izixhobo zeHarmonic: I-UPS, i-air conditioning, i-elevator, izibane ze-LED

Ukwenziwa kweemoto

Umthombo weHarmonic: inverter, isilungisi

Izixhobo zeHarmonic: umatshini wokuwelda, inkqubo yokuhambisa

Ukuveliswa kwamandla enkunkuma

Umthombo weHarmonic: isilungisi, inverter

Izixhobo zeHarmonic: zonke iintlobo zeempompo

Ukucocwa kogutyulo

Umthombo weHarmonic: inverter, isilungisi

Izixhobo zeHarmonic: fan, impompo

Imfumba yokutshaja imoto

Umthombo weHarmonic: isilungisi

Isixhobo seHarmonic: itshaja

Semiconductor

Umthombo weHarmonic: i-thyristor, isithando somlilo sekristale enye

Izixhobo zeHarmonic: i-quartz crucible, thyristor

Esibhedlele

Umthombo weHarmonic: isilungisi, i-UPS, i-inverter

Izixhobo zeHarmonic: izixhobo ezichanekileyo, izibane ze-LED, izinyusi, i-UPS

Ishishini lamaphepha

Umthombo weHarmonic: isibane se-halogen, inverter

Izixhobo zeHarmonic: i-pulper, ukusika iphepha, i-overpress, isibane se-arc

Ukunyibilikiswa kwentsimbi kunye nentsimbi

Umthombo weHarmonic: i-rectifier, inverter, thyristor

Izixhobo zeHarmonic: isithando somlilo, isithando somlilo esiphakathi

Iqonga lokumba

Umthombo weHarmonic: isilungisi, inverter

Izixhobo zeHarmonic: Iseti yejeneretha ye-AC, impompo

Uyilo lwangoku

Umthombo weHarmonic: isilungisi, inverter

Izixhobo zeHarmonic: Ukutshintsha unikezelo lwamandla, umoya womoya, ilifti, i-LED

Ummandla weSicelo oQhelekileyo

Ubuchule beProfession Transformer	Itheyibhile yombuzo wokhetho lwembuyekezo ephakathi
Ubuchule beProfession Transformer	Iindlela zangaphantsi, iitonela, oololiwe abanesantya esiphezulu, izikhululo zeenqwelo moya	Unxibelelwano, ulwakhiwo lwezorhwebo, isinyithi, ibhanki	Ishishini lezonyango	Ukwenziwa kweemoto, ukwenziwa kweenqanawa	Ikhemikhali, i-petroleum	Ishishini leMetallological
Ukwahluka okuphindaphindiweyo kwe-harmonic current	15%	20%	25%	30%	35%	40%
200 kVA	50A	50A	100A	100A	100A	100A
250 kVA	50A	100A	100A	100A	150A	150A
315 kVA	100A	100A	150A	150A	150A	200A
400 kVA	100A	150A	150A	200A	200A	250A
500 kVA	100A	150A	200A	200A	250A	300A
630 kVA	150A	200A	250A	300A	350A	400A
800 kVA	200A	250A	300A	350A	450A	500A
1000 kVA	200A	300A	400A	450A	550A	600A
1250 kVA	300A	350A	450A	550A	650A	750A
1600 kVA	350A	500A	600A	700A	850A	950A
2000 kVA	450A	600A	750A	900A	1050A	1200A
2500 kVA	550A	750A	900A	1150A	1300A	1500A
*Qaphela: Umthamo we-AHF kule theyibhile ingasentla ufunyanwa kumthwalo we-transformer we-80 ekhulwini.Kwiiprojekthi zokwenyani, umthamo we-AHF ufunyanwa ngokulinganayo ngokuthelekisa ixabiso lomthwalo wento kunye ne-80 % yomthwalo wento kule theyibhile.
* Le theyibhile yeyereferensi yokhetho kuphela

UmGaqo wokuSebenza

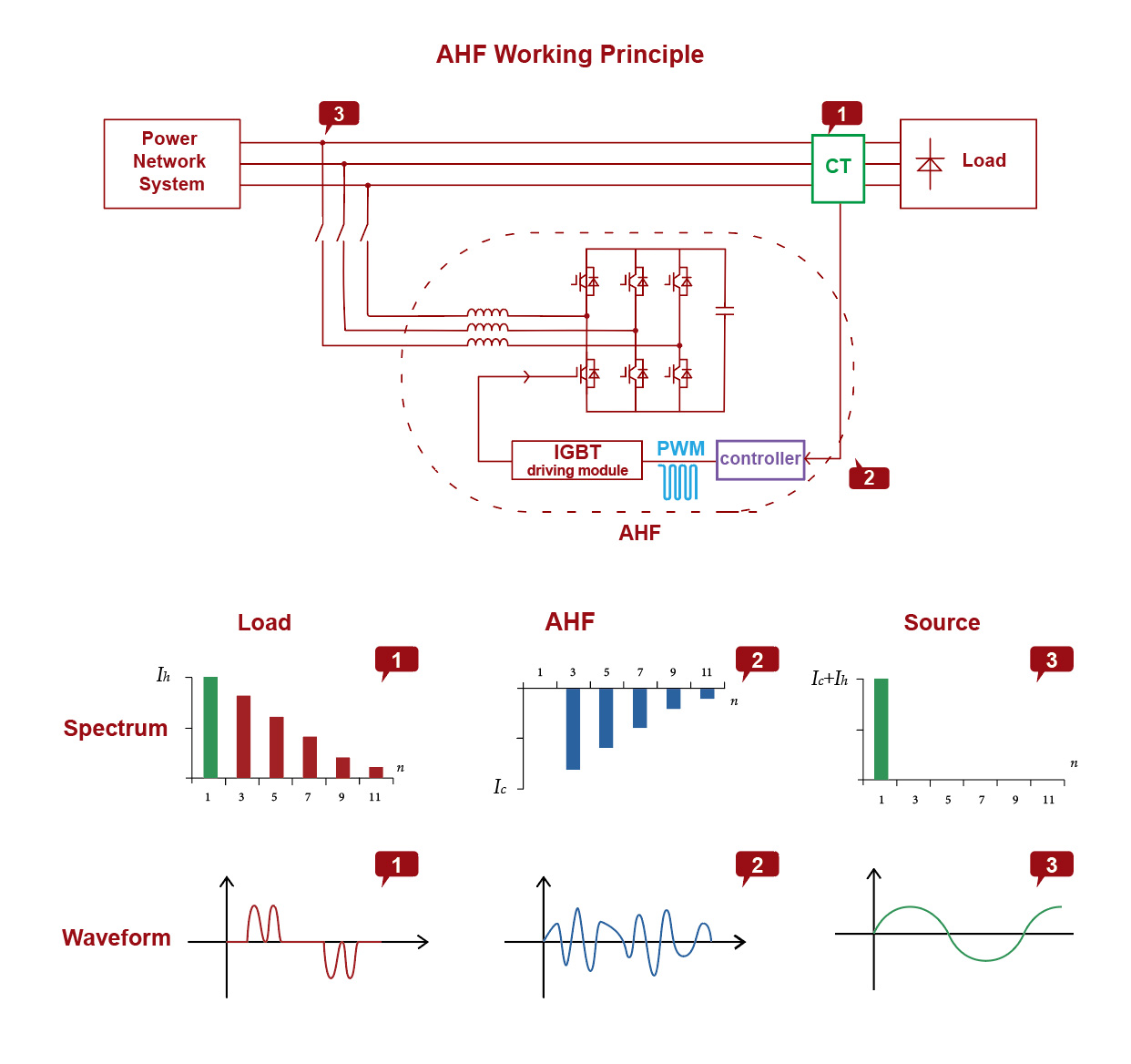

I-CT yangaphandle ibona umthwalo wangoku, i-DSP njenge-CPU ine-arithmetic yokulawula i-logic ephuculweyo, inokulandelela ngokukhawuleza umyalelo wangoku, ukwahlula umthwalo wangoku kumandla asebenzayo kunye namandla asebenzayo ngokusebenzisa i-FFT ehlakaniphile, kwaye ibala umxholo we-harmonic ngokukhawuleza nangokuchanekileyo.Emva koko ithumela umqondiso we-PWM kwibhodi yangaphakathi yomqhubi we-IGBT ukulawula i-IGBT ngokuvula kunye nokuvala kwi-20KHZ frequency.Ekugqibeleni ivelisa imbuyekezo yesigaba esichaseneyo ngoku kwi-inverter induction, kwangaxeshanye i-CT iphinda ibone imveliso yangoku kunye nengxelo engalunganga iya kwi-DSP.Emva koko i-DSP iqhubela phambili nolawulo olulandelayo olunengqiqo ukuphumeza inkqubo echaneke ngakumbi kwaye izinzile.

IiNgcaciso zobuGcisa

UHLOBO	220V Series	400V Series	500V Series	690V Series
Intlawulo yembuyekezo yangoku	23A	15A, 25A, 50A 75A, 100A, 150A	100A	100A
Umbane oqhelekileyo	I-AC220V (-20%~+15%)	I-AC400V (-40%~+15%)	AC500V (-20%~+15%)	I-AC690V (-20%~+15%)
Ilinganiswe rhoqo	50/60Hz±5%
Uthungelwano	Isigaba esinye	3 isigaba 3 ucingo/3 isigaba 4 ucingo
Ixesha lokuphendula	<40ms
Uhluzo lweHarmonics	I-2nd ukuya kwi-50th Harmonics, inani lembuyekezo linokukhethwa, kwaye uluhlu lwembuyekezo enye lunokulungiswa.
Ixabiso lembuyekezo yeHarmonic	>92%
Isakhono sokuhluza umgca ophakathi	/	Umthamo wokuhluza we-3 isigaba sesi-4 somgca ongathathi hlangothi wocingo ngamaxesha angama-3 wesigaba sokulinganisa
Ubuchule bomatshini	>97%
Ukutshintsha amaza	32kHz	16kHz	12.8kHz	12.8kHz
Umsebenzi	Jongana neeharmonics
Amanani ahambelanayo	Akukho mda.Imodyuli enye yokubeka iliso esembindini inokuxhotyiswa ukuya kuthi ga kwiimodyuli zamandla ezisi-8
Iindlela zonxibelelwano	Unxibelelwano lwe-RS485 yamajelo amabini (inkxaso ye-GPRS/WIFI unxibelelwano olungenazingcingo)
Alfitude ngaphandle kokunciphisa	<2000m
Ubushushu	-20~+50℃
Ukufuma	<90%RH,Umndilili wobushushu obuncinane benyanga yi-25°C ngaphandle kokujiya phezu komhlaba
Inqanaba longcoliseko	Ngezantsi kwinqanaba III
Umsebenzi wokukhusela	Ukukhuselwa komthwalo ogqithisileyo,ukhuseleko lwangoku,ukhuseleko olungaphaya kwamandla ombane,ukhuseleko lokusilela kwamandla,ukhuseleko lobushushu obungaphezulu,ukhuseleko olungaqhelekanga,ukhuseleko olufutshane lwesekethe, njl.
Ingxolo	<50dB	<60dB	<65dB
ukumiswa	IRakhi/Ixhonywe eludongeni
Kwindlela yomgca	Ungeno ngasemva(uhlobo lwerack),ungeno oluphezulu(uhlobo olunyuswe eludongeni)
Ibakala lokhuseleko	IP20

Ukubizwa kwemveliso

Imbonakalo yeMveliso

Umzekelo	Umthamo	Umbane weNkqubo	Ubungakanani(w3D3H3)(mm)	Imo yokupholisa
YIY AHF-100-0.4-4L-C	100A	400V(-40%~+15%)	80010002200(IKhabhinethi 1) 80010001600(IKhabhinethi 2) ukhetho	Ukupholisa umoya ngenkani
YIY AHF-150-0.4-4L-C	150A	400V(-40%~+15%)	80010002200(IKhabhinethi 1) 80010001600(IKhabhinethi 2) ukhetho	Ukupholisa umoya ngenkani
YIY AHF-200-0.4-4L-C	200A	400V(-40%~+15%)	80010002200(IKhabhinethi 1) 80010001600(IKhabhinethi 2) ukhetho	Ukupholisa umoya ngenkani
YIY AHF-250-0.4-4L-C	250A	400V(-40%~+15%)	80010002200(IKhabhinethi 1) 80010001600(IKhabhinethi 2) ukhetho	Ukupholisa umoya ngenkani
YIY AHF-300-0.4-4L-C	300A	400V(-40%~+15%)	80010002200(IKhabhinethi 1) 80010001600(IKhabhinethi 2) ngokuzikhethela	Ukupholisa umoya ngenkani
YIY AHF-400-0.4-4L-C	400A	400V(-40%~+15%)	80010002200(IKhabhinethi 1) 80010001600(IKhabhinethi 2) ngokuzikhethela	Ukupholisa umoya ngenkani
YIY AHF-300-0.5-4L-C	300A	500V(-20%~+15%)	80010002200(IKhabhinethi 1)	Ukupholisa umoya ngenkani
YIY AHF-300-0.69-4L-C	300A	690V(-20%~+15%)	80010002200(IKhabhinethi 1)	Ukupholisa umoya ngenkani
*IKhabhinethi yoku-1 inokwamkela iimodyuli ezi-5.IKhabhinethi yesi-2 inokwamkela iimodyuli ezi-3.
*Ukuba ufuna naziphi na ezinye iisayizi, nceda uqhagamshelane nathi ukuze wenze ngokwezifiso.
